IT-8012XSMD-1180

IT-8012XSMD-1180

    Product brand: getwell Electronics


    Product number:IT-8012XSMD-1180


    Rated current:0.5A


    Rated voltage:12V DC 50mA


    Operating temperature:-40~+80℃


    Storage temperature:-55~+80℃


    Contact impedance:100m ohms max.


    Withstand voltage:  500V AC


    Insulation resistance:1000M ohms min


    Durability:10000次


    Product temperature resistance:260±5℃ 10S


    meets theRoHS


    Custom processing: Yes


    MOQ: According to customer requirements (if your quantity reaches our MOQ, the price will be more favorable)

Package
  • 1、 inner plastic bag, outer packing box;
  • 2、10 plastic bags in one carton and 16 cartons in a tray
  • 3、 carton gross weight: 20-30KGS carton size: 345*255*150MM
  • 4、 customized according to customer requirements
Application range
  • Products are widely used in electronic products such as smartphones, learning machines, tablet computers, and Bluetooth headsets.

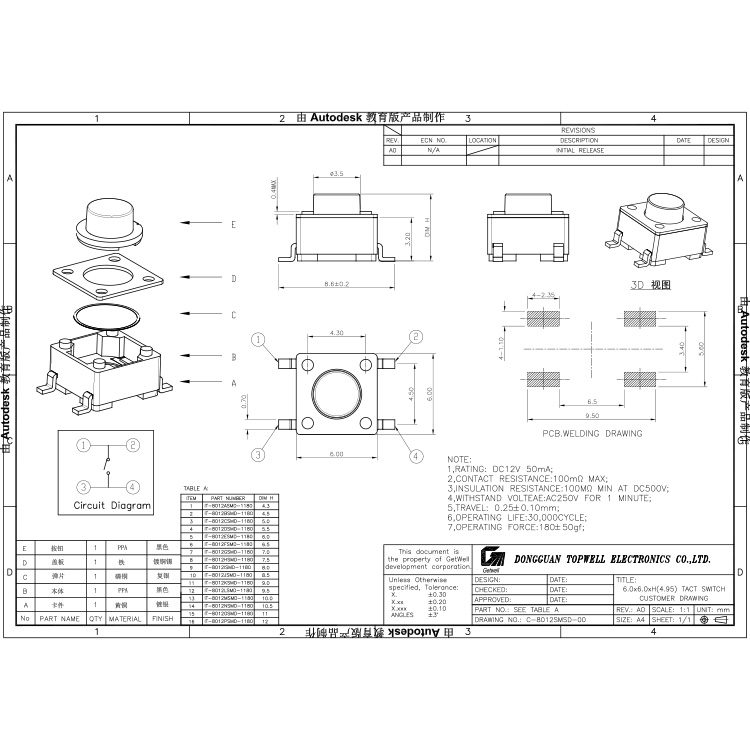

Product drawings Download PDF
    IT-8012XSMD-1180
