TF deck TFC-1110S-142-49

TF deck TFC-1110S-142-49

    Product brand: getwell Electronics


    Product number:TFC-1110S-142-49


    Rated current:0.5A


    Rated voltage:3.6V DC


    Operating temperature:-20~+85℃


    Storage temperature:-20~+85℃


    Contact impedance:100m ohms max.


    Withstand voltage: 250V AC / 1 minute


    Insulation resistance:100M ohms min./500VDC


    Durability times: 5000 times


    Product temperature resistance:260±5℃ 10S


    meets the RoHS


    Custom processing: Yes


    MOQ: According to customer requirements (if your quantity reaches our MOQ, the price will be more favorable)

Package
  • 1、 tape tape
Application range
  • Products are widely used in smart phones, learning machines, tablets, Bluetooth headsets, HIFI audio, walkie-talkies, car and other consumer electronics

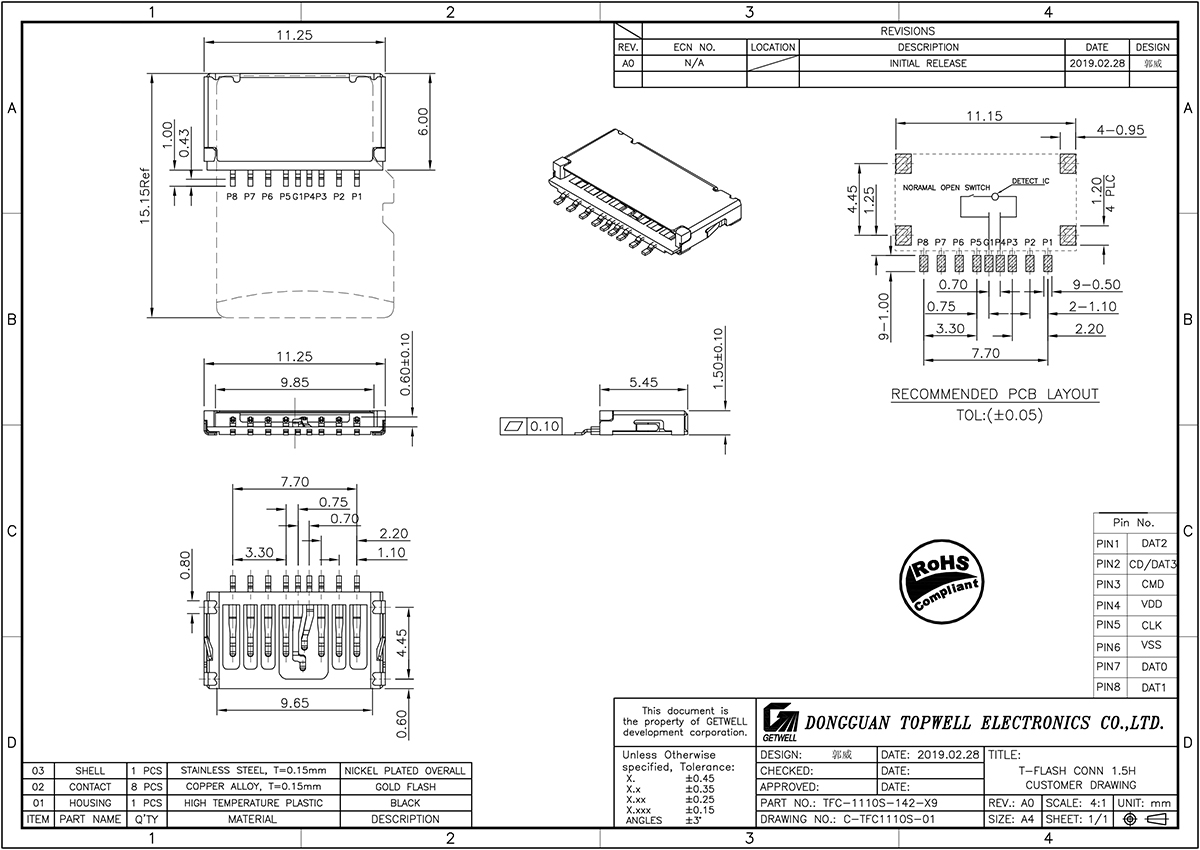

Product drawings Download PDF
    TF deck TFC-1110S-142-49
