Power socket DS-0315D00-137-182

Power socket DS-0315D00-137-182

    Product brand: getwell Electronics

    Product number:DS-0315D00-137-182

    Rated current:1.5A

    Rated voltage:32V DC

    Operating temperature:-20~+80℃

    Storage temperature:-20~+80℃

    Contact impedance:100m ohms max.

    Withstand voltage: 250V AC / 1 minute

    Insulation resistance:100M ohms min./500VDC

    Durability: 10000 times

    Product temperature resistance:260±5℃ 10S

    RoHS compliant

    Custom processing: Yes

    Start Order: According to customer requirements (if your quantity reaches our MOQ, the price will be more favorable)

  • PE bag
  • 1K/bag; 10K one box
Application range
  • Products are widely used in smart phones, learning machines, tablets, Bluetooth headsets, HIFI audio, walkie-talkies, car and other consumer electronics

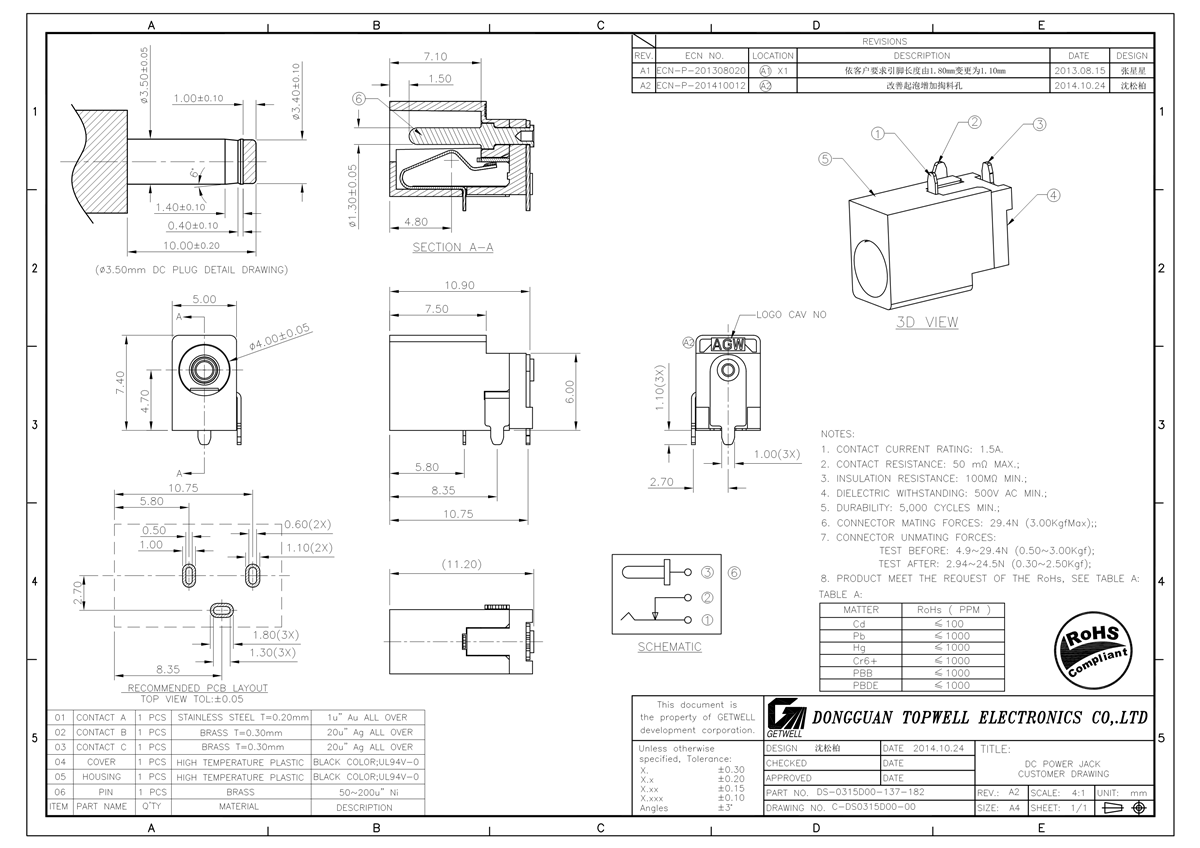

Product drawings Download PDF
    Power socket DS-0315D00-137-182
