Power socket DS-0349D00-257-161

Power socket DS-0349D00-257-161

    Product brand: getwell Electronics


    Product number:DS-0349D00-257-161


    Rated current:1.5A


    Rated voltage:32V DC


    Operating temperature:-20~+80℃


    Storage temperature:-20~+80℃


    Contact impedance:100m ohms max.


    Withstand voltage: 250V AC / 1 minute


    Insulation resistance:100M ohms min./500VDC


    Durability: 10000 times


    Product temperature resistance:260±5℃ 10S


    RoHS compliant


    Custom processing: Yes


    Start Order: According to customer requirements (if your quantity reaches our MOQ, the price will be more favorable)


Package
  • PE bag
  • 1K/bag; 10K one box
Application range
  • Products are widely used in smart phones, learning machines, tablets, Bluetooth headsets, HIFI audio, walkie-talkies, car and other consumer electronics

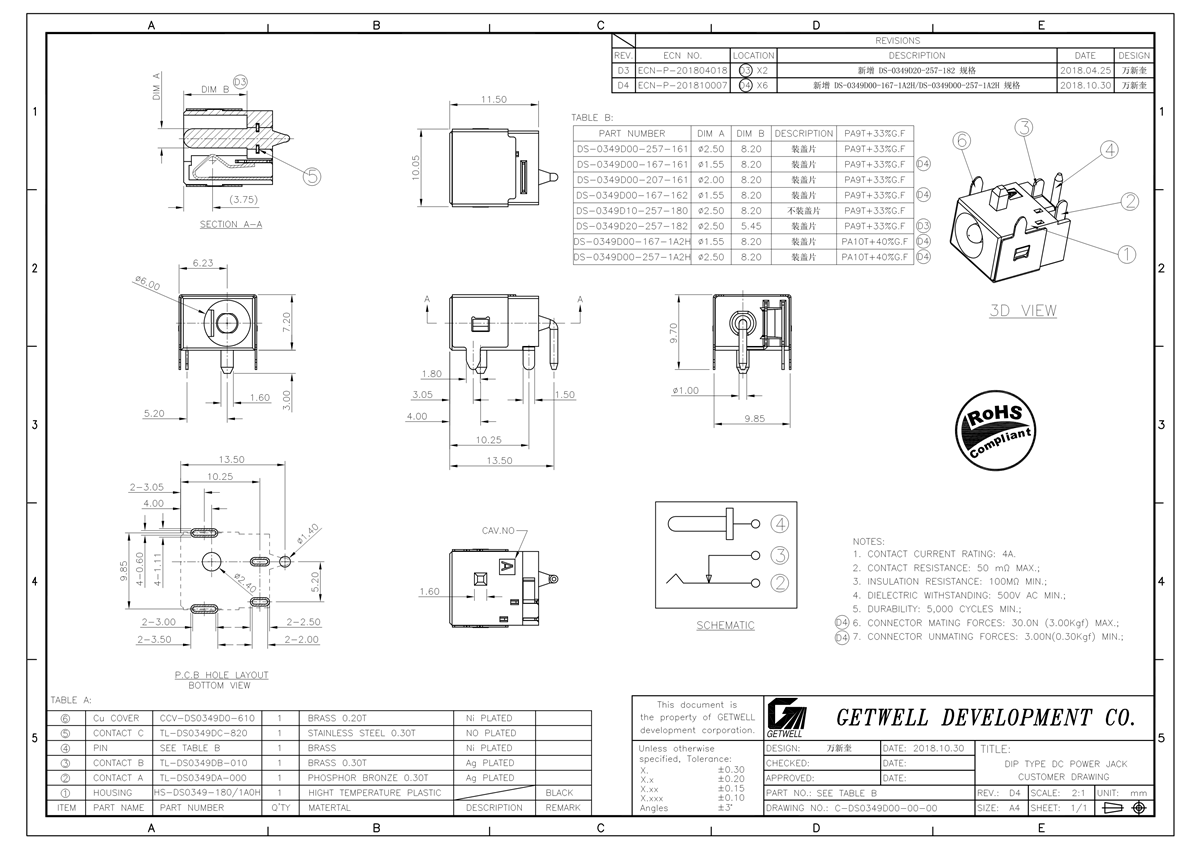

Product drawings Download PDF
    Power socket DS-0349D00-257-161
